Fractal Design Define 7 Compact Mid Tower Windowed PC Case

Fractal Design Define 7 Compact, Mid Tower w/ Light Tint Tempered Glass Window, 120/140mm Fan, USB 3.1 C, ATX/mATX/mITX

Scan code: LN105557 Manufacturer code: FD-C-DEF7C-03
£114.98
£5.48 Next day delivery
Item due on 15 June 2025
Due 15th Jun
Pay in 3 interest-free payments of £38.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

Suggested Alternatives

Define 7 Compact Black Windowed Mid-Tower Case from Fractal Design

fractal define 7 compact

UTILIZE FRACTAL DESIGN GREATNESS The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame. The compact yet spacious interior fits ATX, mATX and Mini-ITX motherboards, and fits GPUs up to 360mm with a 240mm radiator in the top. You can also swap the top panel from solid steel to filtered ventilation to suit your PC needs. The robust front I/O panel includes five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

Build your PC to Suit your Needs

Open and interchangeable Brushed aluminum front and interchangeable side panels give a very clean look. The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

interchangeable panels

Superior Airflow by Design

fans

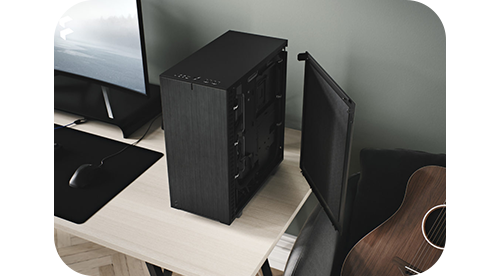

Remarkably quiet The Define 7 Compact uses a solid construction with industrial high-density sound damping helps maintain whisper-quiet operation. The brushed aluminum front and top-latching side panels offer a clean sophisticated look, and the top panel effortlessly swaps from solid steel to filtered ventilation.

Versatile Cooling Options

fans

Substantial cooling Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm, with 1x 120 mm and 1x 140 mm Dynamic X2 fans included. The ventilated PSU shroud with a two-part removable cover offers optimal coverage and front radiator support.

Made for Endless High-Performance

cables

Concealed storageYou can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.

fan hub

More in storeA pair of SSDs are easily mounted straight on the PSU shroud.

type c

Front, top and baseEasy-to-clean high airflow nylon filters.

See the Define 7 Compact in Action

define video
Specifications
Core Chassis Specifications
Case Edition Define 7 Compact Black TG Light Tint
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120mm
Fans Included
  • 1 x 120mm
  • 1 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 280/360mm
Top Radiator Compatibility 1 x 240mm
Bottom Radiator Compatibility 1 x 120mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 169 mm
Max GPU Card Length 341 mm
Cable Routing Space 17-28 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass (Tinted)
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Aluminium
Dimensions 210 x 474 x 427 (WxHxD mm)
Weight 8.61 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN105557
Model Number FD-C-DEF7C-03
GTIN 7340172702184
