ASUS ROG STRIX X670E-I GAMING WIFI AM5 DDR5 PCIe 5.0 Mini-ITX Motherboard
ASUS ROG STRIX X670E-I GAMING WIFI, AMD X670, AM5, DDR5, PCIe 5.0, 2x M.2, 2.5G/WiFi 6E, USB 4.0, AMD EXPO™, Mini-ITX
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £11.16 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
ROG Strix X670E-I GAMING WIFI Ryzen 7000 Series Mini-ITX Motherboard
GET READY FOR THE NEWEST GENERATION The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
Please note: This motherboard is compatible with AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors.
AMD X670Chipset
AMD AM5CPU Socket
AMD Ryzen 7000 SeriesDesktop Processors
Mini-ITXForm Factor
Teamed Power Architecture and Power Solution

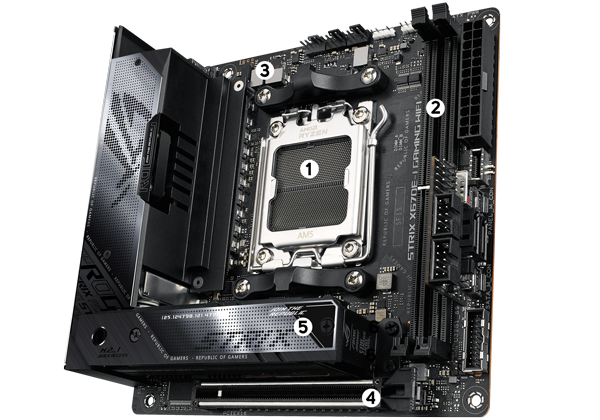

1. AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
2. Dual Channel Memory, 2 x DIMM Max. 128GB, DDR5 6400+ (OC) /
Supports AMD EXTended Profiles for Overclocking (EXPO™) and OPTIMEM II
3. 10+2 Power Stages
4. Expansion Slots – • 1 x PCIe 5.0 (x16) SafeSlot CPU
5. M.2 Slots – • 1 x M.2 PCIe 5.0 (x4) • 1 x M.2 PCIe 4.0 (x4)
Experience All-Round Performance
Push frequency and timings to the max Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-I, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Featured overclocking tools include Dynamic OC Switcher, Ryzen™ Core Flex and PBO Enhancement.
DDR5 Strength & AEMP FirmwareFor those who want to fly past stock DDR5 speeds, the Strix X670E-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
High-quality components
1. Power Architecture 10+2 power stages
2. Alloy chokes and durable capacitors
3. 8-pin PROCOOL II power connector
4. DIGI+ power control (VRM)
5. Multi-layered 10 layer PCB
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Expert Thermal Management
with HIGH-CONDUCTIVITY THERMAL PADS The VRM heatsink extends over the rear I/O to maximize surface area and includes active cooling to deftly handle power thermals of the latest AMD processors – while leaving clearance for large CPU coolers. High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
M.2 and chipset heatsinks To save space, both on-board M.2 slots and heatsinks are stacked together over the chipset. And to keep the thermals of installed high-performance drives in check, the entire array is cooled by an embedded fan.
CPU fan headers & AIO A dedicated PWM/DC fan header provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.
4-pin PWM/DC fan headers Each header supports auto-detection of PWM or DC fans.
Undeniably ROG Strix
Play in style The dark ROG Strix colourway pairs perfectly with other products from the diverse ROG ecosystem, allowing you to create a fully customized gaming setup that reflects your personal style. A perforated metal mesh design on the I/O shield and M.2 heatsink can catch the light of internal RGB accessories or elegantly fade into the darkness of stealthy builds. Cypertext and angular accents make this board an unmistakable member of the ROG Strix series.
The ROG Strix Ecosystem Awaits Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand. The ROG Strix X670E-I bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.
Create a Fully Customized Gaming Setup
ROG FPS-II CardThe ROG FPS-II card groups I/O onto a vertically-mounted card, saving valuable on-board space and tidying cable management. Connections can be made before the card is installed, greatly simplifying installation in cramped quarters. On board are two SATA ports, front panel headers, two USB 2.0 headers (allows for three USB 2.0 connections), a CPU_OV jumper for extreme overclocking, an Alteration mode switch, and a Clear CMOS header to reset BIOS to factory default.
PCIe 5.0 PerformanceThe ROG Strix X670E-I neatly increases mini-ITX expansion capabilities with vertically-stacked PCIe 5.0 and PCIe 4.0 M.2 slots. PCIe 5.0 support also extends to the x16 slot, which is reinforced with SafeSlot, providing structural support and bandwidth to handle large and powerful next-gen GPUs.
Supreme Networking Capability

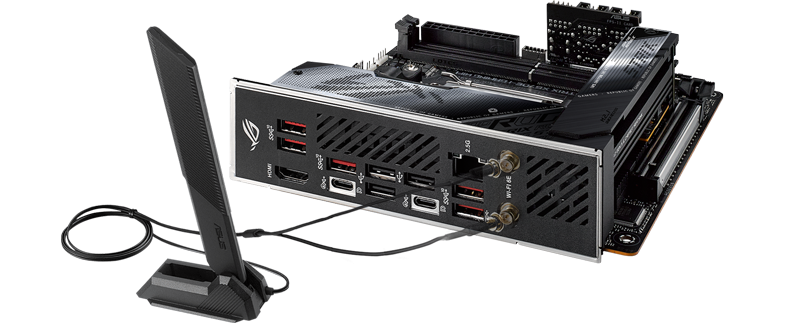

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel® 2.5 GB EthernetOnboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5x faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
Introducing the ROG Strix Hive
Control at your fingertips The all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.
Gaming features • FLEXKEY • Volume Control Dial • EZ MODE PBO • Q-LED • BIOS Flashback™
Connectivity features • USB 2.0 with BIOS Flashback™ • USB 3.2 Gen 2 (USB Type-C®)
Audio features • USB Type-C® Hive Power and Data Connector • Headphone Jack with Mic in • Mic in Jack with Optical S/PDIF Out
Leading Connectivity
Armed with all the essentials The ATX experience thoughtfully scaled into mini-ITX: build easier the ROG FPS-II card, and grace your desktop with the ROG Hive, dual USB4® ports, and support for the latest WiFi 6E standard.
Motherboard & ROG FPS-II Card Breakdown

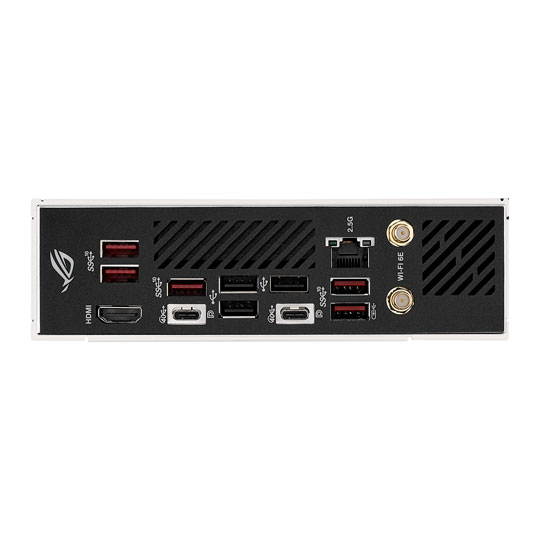

I/O Ports
• HDMI Port
• 2 x USB4® Type-C® Ports
• 3 x USB 2.0 Ports (3 x Type-A)
• 5 x USB 3.2 Gen 2 Ports
• BIOS Flashback Button
(5 x Type-A, 1 Port Supports ROG Strix Hive
• Intel® 2.5Gb Ethernet Port
• WiFi 6E
Connectors & Headers
• 1 x USB 3.2 Gen 2 Connector
(Supports USB Type-C®)
ROG FPS-II Card–
• 2 x USB 2.0 Headers
(Supports 3 x USB 2.0 Ports)
• 2 x SATA Ports
• Front Panel Headers
• CPU_OV Header
• Clear CMOS Header
• Alteration Mode Switch
• USB 3.2 Gen 1 Header
(Supports 2 x USB 3.2 Gen 1 Ports)
Control your Rig with Armoury Crate
account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
